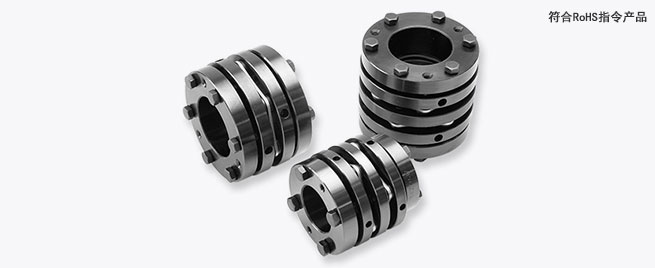

日本三木MIKIPULLEY伺服挠性联轴器SFF系列

是采用钢材质夹紧毂的板簧式联轴器，扭转刚性极高，能够实现准确的轴旋转和超精密控制。备有超高刚性的单元件型和通过隔板配置两个元件、具有灵活性的双元件型。采用高精度夹紧方式采用高精度夹紧方式安装到轴上，大幅减少安装用的螺栓数量。可大幅缩短机械装置的安装时间。完美匹配最新的伺服电动机联轴器的外径尺寸、对应轴径种类、容许转矩等根据最新伺服电动机的规格·尺寸来设定。完美匹配各公司最新的伺服电动机。应对宽广的轴尺寸公差轴的尺寸公差以h7级为基本，支持k6级、m6级、j6级等宽广的公差等级。最大1.5倍的容许转矩与本公司以往型号相比，实现最大1.5倍（按联轴器外径尺寸相比）的容许转矩。能够缩小联轴器的体积，还为降低惯性动量作出了贡献。大直径对应摩擦连接与以往型号的摩擦连接型相比，在套筒外周没有设置用于提高插入精度的导套，因此可以支持大直径轴。牢固的轴连接采用摩擦连接方式安装到轴上，只需按顺序紧固法兰端面的加压螺栓即可得到较高的连接力。另外，法兰外周面的钻孔中插入圆棒等，在防止追随转动的同时，可以进行安装。应对宽广的轴尺寸公差轴的尺寸公差以h7级为基本，支持k6级、m6级、j6级等宽广的公差等级。装配完成品联轴器两侧的法兰使用高精度专用夹具进行装配，确保了高水平的同心度。可以为缩短客户的装配作业时间作出贡献。

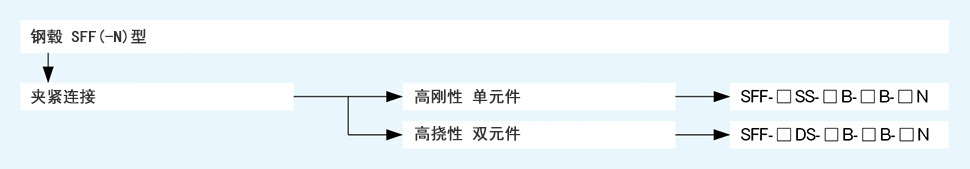

产品线

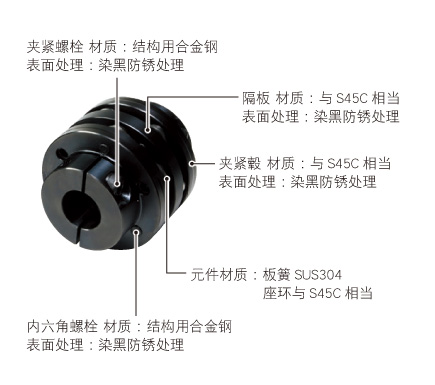

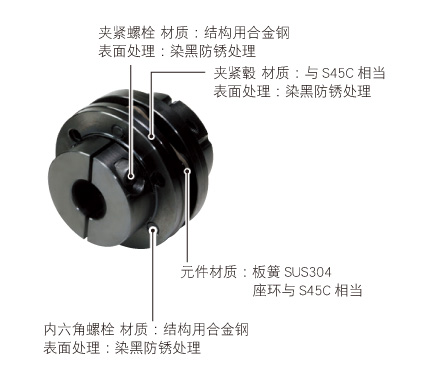

结构和材质

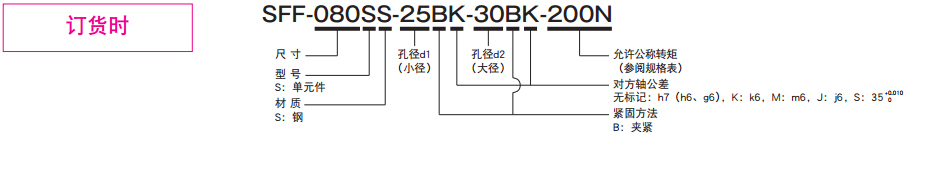

SFF SS (-N)

SFF DS (-N)

【规格】

型号	允许转矩[N•m]	允许误差			最高转速[min^-1]	扭转弹性常数[N•m/rad]	轴向弹性常数[N/mm]	转动惯量[kg・m²]	质量[kg]
型号	允许转矩[N•m]	偏心[mm]	偏角[°]	轴向[mm]	最高转速[min^-1]	扭转弹性常数[N•m/rad]	轴向弹性常数[N/mm]	转动惯量[kg・m²]	质量[kg]
SFF-040SS-8N	8	0.02	1	±0.2	18000	15000	174	0.032×10^-3	0.17
SFF-040SS-12N	12	0.02	1	±0.2	18000	15000	174	0.032×10^-3	0.17
SFF-050SS-25N	25	0.02	1	±0.3	18000	32000	145	0.10×10^-3	0.36
SFF-060SS-60N	60	0.02	1	±0.3	18000	104000	399	0.21×10^-3	0.47
SFF-070SS-90N	90	0.02	1	±0.5	18000	240000	484	0.40×10^-3	0.72
SFF-070SS-100N	100	0.02	1	±0.5	18000	240000	484	0.42×10^-3	0.67
SFF-080SS-150N	150	0.02	1	±0.5	17000	120000	96	0.79×10^-3	1.04
SFF-080SS-200N	200	0.02	1	±0.5	17000	310000	546	1.11×10^-3	1.35
SFF-090SS-250N	250	0.02	1	±0.6	15000	520000	321	1.54×10^-3	1.62
SFF-090SS-300N	300	0.02	1	±0.6	15000	520000	321	1.58×10^-3	1.53
SFF-100SS-450N	450	0.02	1	±0.65	13000	740000	540	3.27×10^-3	2.53
SFF-120SS-600N	600	0.02	1	±0.8	11000	970000	360	6.90×10^-3	3.78

※最高转速未考虑动平衡。

※扭转弹性常数为单个元件的数值。

※转动惯量及质量为最大孔径时的数值。

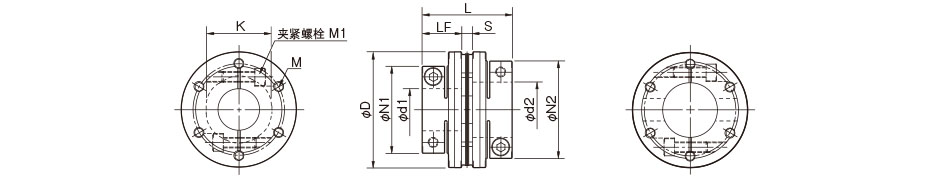

【尺寸】

単位 [mm]

型号	d1		d2		D[mm]	L[mm]	N1[mm]	N2[mm]	LF[mm]	S[mm]	K[mm]	M1		M2
型号	最小[mm]	最大[mm]	最小[mm]	最大[mm]	D[mm]	L[mm]	N1[mm]	N2[mm]	LF[mm]	S[mm]	K[mm]	数量公称	紧固转矩 [N·m]	数量公称	紧固转矩 [N·m]
SFF-040SS-8N	8	9.525	8	16	38	38.9	33	33	17.5	3.9	17	2-M4	3.4	2-M4	3.4
SFF-040SS-12N	10	16	10	16	38	38.9	33	33	17.5	3.9	17	2-M4	3.4	2-M4	3.4
SFF-050SS-25N	10	19	10	19	48	48.4	42	42	21.5	5.4	20	2-M5	7	2-M5	7
SFF-060SS-60N	12	22	12	22	58	53.4	44	44	24	5.4	32	2-M6	14	2-M6	14
	12	22	24	28	58	53.4	44	48	24	5.4	32	2-M6	14	2-M5	7
	24	28	24	28	58	53.4	48	48	24	5.4	32	2-M5	7	2-M5	7
SFF-070SS-90N	18	19	18	25	68	55.9	47	47	25	5.9	38	2-M6	14	2-M6	14
SFF-070SS-90N	18	19	28	35	68	55.9	47	56	25	5.9	38	2-M6	14	2-M6	14
SFF-070SS-100N	20	25	20	25	68	55.9	47	47	25	5.9	38	2-M6	14	2-M6	14
	20	25	28	35	68	55.9	47	56	25	5.9	38	2-M6	14	2-M6	14
	28	35	28	35	68	55.9	56	56	25	5.9	38	2-M6	14	2-M6	14
SFF-080SS-150N	22	25	22	25	78	68.3	53	53	30	8.3	37	2-M8	34	2-M8	34
	22	25	28	35	78	68.3	53	56	30	8.3	37	2-M8	34	2-M6	14
	28	35	28	35	78	68.3	56	56	30	8.3	37	2-M6	14	2-M6	14
SFF-080SS-200N	22	25	22	25	78	67.7	53	53	30	7.7	42	2-M8	34	2-M8	34
	22	25	28	35	78	67.7	53	70	30	7.7	42	2-M8	34	2-M8	34
	28	35	28	35	78	67.7	70	70	30	7.7	42	2-M8	34	2-M8	34
SFF-090SS-250N	25	28	25	32	88	68.3	66	66	30	8.3	50	2-M8	34	2-M8	34
SFF-090SS-250N	25	28	35	42	88	68.3	66	74	30	8.3	50	2-M8	34	2-M8	34
SFF-090SS-300N	30	32	30	32	88	68.3	66	66	30	8.3	50	2-M8	34	2-M8	34
	30	32	35	42	88	68.3	66	74	30	8.3	50	2-M8	34	2-M8	34
	35	42	35	42	88	68.3	74	74	30	8.3	50	2-M8	34	2-M8	34
SFF-100SS-450N	32	48	32	48	98	90.2	84	84	40	10.2	56	2-M10	68	2-M10	68
SFF-120SS-600N	32	45	32	45	118	90.2	84	84	40	10.2	68	2-M10	68	2-M10	68
	32	45	48	55	118	90.2	84	100	40	10.2	68	2-M10	68	2-M10	68
	48	55	48	55	118	90.2	100	100	40	10.2	68	2-M10	68	2-M10	68

※夹紧螺栓M1公称为数量-螺钉公称，数量是单侧毂的数量。

【标准孔径组合】

型号	标准孔径d1·d2［mm］
型号	公称	8	9	9.525	10	11	12	14	15	16	17	18	19	20	22	24	25	28	30	32	35	38	40	42	45	48	50	55
SFF-040SS -8N	d1	●	●	●
SFF-040SS -8N	d2	●	●	●	●	●	●	●	●	●
SFF-040SS -12N	d1				●	●	●	●	●	●
SFF-040SS -12N	d2				●	●	●	●	●	●
SFF-050SS -25N	d1				●	●	●	●	●	●	●	●	●
SFF-050SS -25N	d2				●	●	●	●	●	●	●	●	●
SFF-060SS -60N	d1						●	●	●	●	●	●	●	●	●	●	●	●
SFF-060SS -60N	d2						●	●	●	●	●	●	●	●	●	●	●	●
SFF-070SS -90N	d1											●	●
SFF-070SS -90N	d2											●	●	●	●	●	●	●	●	●	●
SFF-070SS -100N	d1													●	●	●	●	●	●	●	●
SFF-070SS -100N	d2													●	●	●	●	●	●	●	●
SFF-080SS -150N	d1														●	●	●	●	●	●	●
SFF-080SS -150N	d2														●	●	●	●	●	●	●
SFF-080SS -200N	d1														●	●	●	●	●	●	●
SFF-080SS -200N	d2														●	●	●	●	●	●	●
SFF-090SS -250N	d1																●	●
SFF-090SS -250N	d2																●	●	●	●	●	●	●	●
SFF-090SS -300N	d1																		●	●	●	●	●	●
SFF-090SS -300N	d2																		●	●	●	●	●	●
SFF-100SS -450N	d1																			●	●	●	●	●	●	●
SFF-100SS -450N	d2																			●	●	●	●	●	●	●
SFF-120SS -600N	d1																			●	●	●	●	●	●	●	●	●
SFF-120SS -600N	d2																			●	●	●	●	●	●	●	●	●

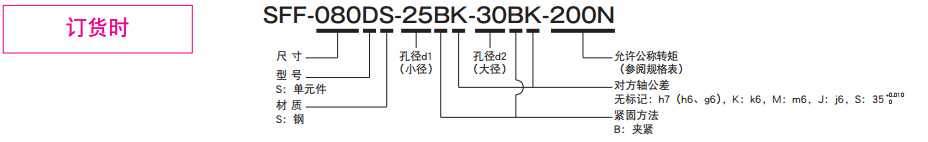

SFF DS(-N) TYPE

【规格】

型号	允许转矩[N•m]	允许误差			最高转速[min^-1]	扭转弹性常数[N•m/rad]	轴向弹性常数[N/mm]	转动惯量[kg・m²]	质量[kg]
型号	允许转矩[N•m]	偏心[mm]	偏角[°]	轴向[mm]	最高转速[min^-1]	扭转弹性常数[N•m/rad]	轴向弹性常数[N/mm]	转动惯量[kg・m²]	质量[kg]
SFF-040DS -8N	8	0.10	1 (单侧)	±0.4	14000	7500	87	0.042×10^-3	0.22
SFF-040DS -12N	12	0.10	1 (单侧)	±0.4	14000	7500	87	0.042×10^-3	0.22
SFF-050DS -25N	25	0.20	1 (单侧)	±0.6	14000	16000	72.5	0.13×10^-3	0.46
SFF-060DS -60N	60	0.20	1 (单侧)	±0.6	14000	52000	199.5	0.27×10^-3	0.60
SFF-070DS -90N	90	0.25	1 (单侧)	±1.0	14000	120000	242	0.53×10^-3	0.90
SFF-070DS -100N	100	0.25	1 (单侧)	±1.0	14000	120000	242	0.55×10^-3	0.85
SFF-080DS -150N	150	0.32	1 (单侧)	±1.0	13000	60000	48	1.10×10^-3	1.37
SFF-080DS -200N	200	0.31	1 (单侧)	±1.0	13000	155000	273	1.41×10^-3	1.67
SFF-090DS -250N	250	0.32	1 (单侧)	±1.2	12000	260000	160.5	2.03×10^-3	2.02
SFF-090DS -300N	300	0.32	1 (单侧)	±1.2	12000	260000	160.5	2.10×10^-3	1.92
SFF-100DS -450N	450	0.38	1 (单侧)	±1.3	10000	370000	270	4.18×10^-3	3.12
SFF-120DS -600N	600	0.38	1 (单侧)	±1.6	9000	485000	180	8.87×10^-3	4.60

※最高转速未考虑动平衡。

※扭转弹性常数为元件部分单独的实测值。

※转动惯量及质量为最大孔径时的数值。

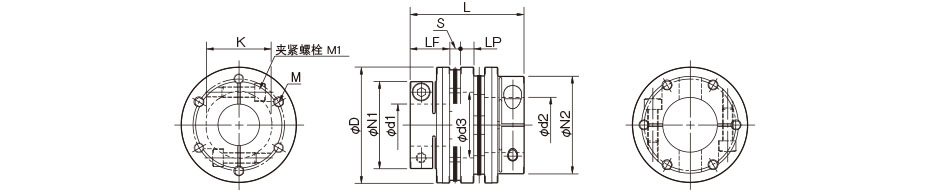

【尺寸】

型号	d1		d2		D[mm]	L[mm]	N1[mm]	N2[mm]	LF[mm]	LP[mm]	S[mm]	d3[mm]	K[mm]	M1		M2
型号	最小[mm]	最大[mm]	最小[mm]	最大[mm]	D[mm]	L[mm]	N1[mm]	N2[mm]	LF[mm]	LP[mm]	S[mm]	d3[mm]	K[mm]	数量-公称	紧固转矩 [N·m]	数量-公称	紧固转矩 [N·m]
SFF-040DS -8N	8	9.525	8	16	38	48.8	33	33	17.5	6	3.9	17	17	2-M4	3.4	2-M4	3.4
SFF-040DS -12N	10	16	10	16	38	48.8	33	33	17.5	6	3.9	17	17	2-M4	3.4	2-M4	3.4
SFF-050DS -25N	10	19	10	19	48	60.8	42	42	21.5	7	5.4	20	20	2-M5	7	2-M5	7
SFF-060DS -60N	12	22	12	22	58	65.8	44	44	24	7	5.4	29	32	2-M6	14	2-M6	14
	12	22	24	28	58	65.8	44	48	24	7	5.4	29	32	2-M6	14	2-M5	7
	24	28	24	28	58	65.8	48	48	24	7	5.4	29	32	2-M5	7	2-M5	7
SFF-070DS -90N	18	19	18	25	68	69.8	47	47	25	8	5.9	37	38	2-M6	14	2-M6	14
SFF-070DS -90N	18	19	28	35	68	69.8	47	56	25	8	5.9	37	38	2-M6	14	2-M6	14
SFF-070DS -100N	20	25	20	25	68	69.8	47	47	25	8	5.9	37	38	2-M6	14	2-M6	14
	20	25	28	35	68	69.8	47	56	25	8	5.9	37	38	2-M6	14	2-M6	14
	28	35	28	35	68	69.8	56	56	25	8	5.9	37	38	2-M6	14	2-M6	14
SFF-080DS -150N	22	25	22	25	78	86.6	53	53	30	10	8.3	40	37	2-M8	34	2-M8	34
	22	25	28	35	78	86.6	53	56	30	10	8.3	40	37	2-M8	34	2-M6	14
	28	35	28	35	78	86.6	56	56	30	10	8.3	40	37	2-M6	14	2-M6	14
SFF-080DS -200N	22	25	22	25	78	85.4	53	53	30	10	7.7	40	42	2-M8	34	2-M8	34
	22	25	28	35	78	85.4	53	70	30	10	7.7	40	42	2-M8	34	2-M8	34
	28	35	28	35	78	85.4	70	70	30	10	7.7	40	42	2-M8	34	2-M8	34
SFF-090DS -250N	25	28	25	32	88	86.6	66	66	30	10	8.3	50	50	2-M8	34	2-M8	34
SFF-090DS -250N	25	28	35	42	88	86.6	66	74	30	10	8.3	50	50	2-M8	34	2-M8	34
SFF-090DS -300N	30	32	30	32	88	86.6	66	66	30	10	8.3	50	50	2-M8	34	2-M8	34
	30	32	35	42	88	86.6	66	74	30	10	8.3	50	50	2-M8	34	2-M8	34
	35	42	35	42	88	86.6	74	74	30	10	8.3	50	50	2-M8	34	2-M8	34
SFF-100DS -450N	32	48	32	48	98	112.4	84	84	40	12	10.2	52	56	2-M10	68	2-M10	68
SFF-120DS -600N	32	45	32	45	118	112.4	84	84	40	12	10.2	72	68	2-M10	68	2-M10	68
	32	45	48	55	118	112.4	84	100	40	12	10.2	72	68	2-M10	68	2-M10	68
	48	55	48	55	118	112.4	100	100	40	12	10.2	72	68	2-M10	68	2-M10	68

※夹紧螺栓M1公称为数量-螺钉公称，数量是单侧毂的数量。

【标准孔径组合】

型号	标准孔径d1·d2［mm］
型号	公称	8	9	9.525	10	11	12	14	15	16	17	18	19	20	22	24	25	28	30	32	35	38	40	42	45	48	50	55
SFF-040DS -8N	d1	●	●	●
SFF-040DS -8N	d2	●	●	●	●	●	●	●	●	●
SFF-040DS -12N	d1				●	●	●	●	●	●
SFF-040DS -12N	d2				●	●	●	●	●	●
SFF-050DS -25N	d1				●	●	●	●	●	●	●	●	●
SFF-050DS -25N	d2				●	●	●	●	●	●	●	●	●
SFF-060DS -60N	d1						●	●	●	●	●	●	●	●	●	●	●	●
SFF-060DS -60N	d2						●	●	●	●	●	●	●	●	●	●	●	●
SFF-070DS -90N	d1											●	●
SFF-070DS -90N	d2											●	●	●	●	●	●	●	●	●	●
SFF-070DS -100N	d1													●	●	●	●	●	●	●	●
SFF-070DS -100N	d2													●	●	●	●	●	●	●	●
SFF-080DS -150N	d1														●	●	●	●	●	●	●
SFF-080DS -150N	d2														●	●	●	●	●	●	●
SFF-080DS -200N	d1														●	●	●	●	●	●	●
SFF-080DS -200N	d2														●	●	●	●	●	●	●
SFF-090DS -250N	d1																●	●
SFF-090DS -250N	d2																●	●	●	●	●	●	●	●
SFF-090DS -300N	d1																		●	●	●	●	●	●
SFF-090DS -300N	d2																		●	●	●	●	●	●
SFF-100DS -450N	d1																			●	●	●	●	●	●	●
SFF-100DS -450N	d2																			●	●	●	●	●	●	●
SFF-120DS -600N	d1																			●	●	●	●	●	●	●	●	●
SFF-120DS -600N	d2																			●	●	●	●	●	●	●	●	●

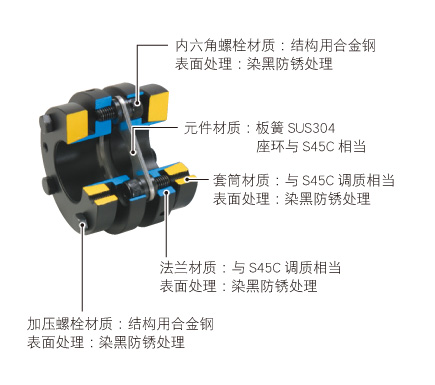

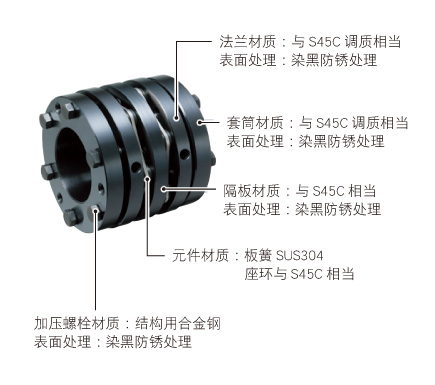

结构和材质

SFF SS

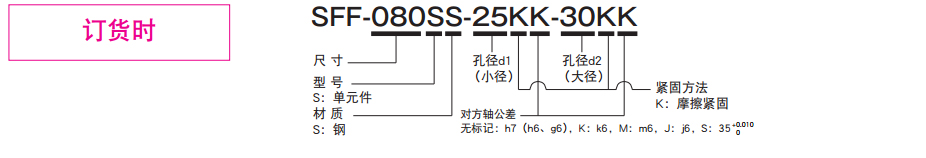

SFF SS TYPE

【规格】

型号	允许转矩[N•m]	允许误差			最高转速[min^-1]	扭转弹性常数[N•m/rad]	轴向弹性常数[N/mm]	转动惯量[kg・m²]	质量[kg]
型号	允许转矩[N•m]	偏心[mm]	偏角[°]	轴向[mm]	最高转速[min^-1]	扭转弹性常数[N•m/rad]	轴向弹性常数[N/mm]	转动惯量[kg・m²]	质量[kg]
SFF-070SS	70	0.02	1	±0.5	18000	60000	105	0.64×10^-3	0.92
SFF-080SS	130	0.02	1	±0.5	17000	64000	96	1.03×10^-3	1.23
SFF-090SS	200	0.02	1	±0.6	15000	140000	320	2.09×10^-3	1.63
SFF-100SS	300	0.02	1	±0.7	13000	160000	360	2.90×10^-3	1.83
SFF-120SS	500	0.02	1	±0.8	11000	140000	360	5.73×10^-3	2.63
SFF-140SS	800	0.02	1	±1.0	10000	100000	360	13.54×10^-3	4.68

※最高转速未考虑动平衡。

※扭转弹性常数为单个元件的数值。

※转动惯量及质量为最大孔径时的数值。

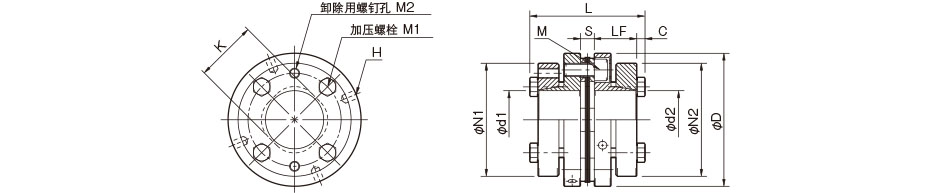

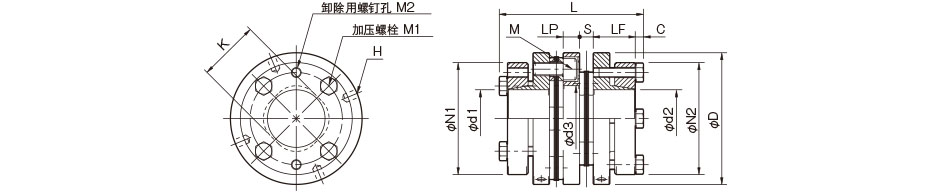

【尺寸】

单位[mm]

型号	D	L	d1	d2	N1, N2	LF	S	C	K	H	M	M1	M2
SFF-070SS	70	63.5	18, 19	18, 19	53	23.5	6.5	5	31	4-5.1	M6	4-M6	2-M6
			20, 22, 24, 25	20, 22, 24, 25	58
			28, 30	28, 30	63
			-	32, 35	68
SFF-080SS	80	69.3	22, 24, 25	22, 24, 25	58	25.5	8.3	5	37	4-5.1	M8	4-M6	2-M6
			28, 30	28, 30	63
			32, 35	32, 35	68
SFF-090SS	90	68.7	28	28	68	25.5	7.7	5	50	3-6.8	M8	6-M6	3-M6
			30, 32, 35	30, 32, 35	73
			38, 40	38, 40	78
			42, 45	42, 45	83
			48	48	88
SFF-100SS	100	69	32, 35	32, 35	73	25.5	8	5	58	3-6.8	M8	6-M6	3-M6
			38, 40	38, 40	78
			42, 45	42, 45	83
			48, 50, 52	48, 50, 52	88
			55	55	93
			-	60	98
SFF-120SS	120	75.2	35	35	73	27.5	10.2	5	68	3-8.6	M10	6-M6	3-M6
			38, 40	38, 40	78
			42, 45	42, 45	83
			48, 50, 52	48, 50, 52	88
			55	55	93
			60	60	98
			62, 65	62, 65	103
			-	70	108
SFF-140SS	140	94.6	35, 38	35, 38	83	36.5	10.6	5.5	78	3-8.6	M12	6-M8	3-M8
			40, 42, 45, 48	40, 42, 45, 48	88
			50, 52, 55	50, 52, 55	98
			60, 62, 65	60, 62, 65	108
			70, 75	70, 75	118
			-	80	123

※加压螺栓M1和卸除用螺钉孔M2公称为数量-螺钉公称。H•M1•M2的数量是单侧毂的数量。

【标准孔径组合】

型号	标准孔径 d1[mm]	标准孔径 d2[mm]
型号	标准孔径 d1[mm]	18	19	20	22	24	25	28	30	32	35	38	40	42	45	48	50	52	55	60	62	65	70	75	80
SFF-070SS	18	●	●	●	●	●	●	●	●	●	●
	19		●	●	●	●	●	●	●	●	●
	20			●	●	●	●	●	●	●	●
	22				●	●	●	●	●	●	●
	24					●	●	●	●	●	●
	25						●	●	●	●	●
	28							●	●	●	●
	30								●	●	●
SFF-080SS	22				●	●	●	●	●	●	●
	24					●	●	●	●	●	●
	25						●	●	●	●	●
	28							●	●	●	●
	30								●	●	●
	32									●	●
	35										●
SFF-090SS	28							●	●	●	●	●	●	●	●	●
	30								●	●	●	●	●	●	●	●
	32									●	●	●	●	●	●	●
	35										●	●	●	●	●	●
	38											●	●	●	●	●
	40												●	●	●	●
	42													●	●	●
	45														●	●
	48															●
SFF-100SS	32									●	●	●	●	●	●	●	●	●	●	●
	35										●	●	●	●	●	●	●	●	●	●
	38											●	●	●	●	●	●	●	●	●
	40												●	●	●	●	●	●	●	●
	42													●	●	●	●	●	●	●
	45														●	●	●	●	●	●
	48															●	●	●	●	●
	50																●	●	●	●
	52																	●	●	●
	55																		●	●
SFF-120SS	35										●	●	●	●	●	●	●	●	●	●	●	●	●
	38											●	●	●	●	●	●	●	●	●	●	●	●
	40												●	●	●	●	●	●	●	●	●	●	●
	42													●	●	●	●	●	●	●	●	●	●
	45														●	●	●	●	●	●	●	●	●
	48															●	●	●	●	●	●	●	●
	50																●	●	●	●	●	●	●
	52																	●	●	●	●	●	●
	55																		●	●	●	●	●
	60																			●	●	●	●
	62																				●	●	●
	65																					●	●
SFF-140SS	35										●	●	●	●	●	●	●	●	●	●	●	●	●	●	●
	38											●	●	●	●	●	●	●	●	●	●	●	●	●	●
	40												●	●	●	●	●	●	●	●	●	●	●	●	●
	42													●	●	●	●	●	●	●	●	●	●	●	●
	45														●	●	●	●	●	●	●	●	●	●	●
	48															●	●	●	●	●	●	●	●	●	●
	50																●	●	●	●	●	●	●	●	●
	52																	●	●	●	●	●	●	●	●
	55																		●	●	●	●	●	●	●
	60																			●	●	●	●	●	●
	62																				●	●	●	●	●
	65																					●	●	●	●
	70																						●	●	●
	75																							●	●
	标准孔径 d1[mm]	18	19	20	22	24	25	28	30	32	35	38	40	42	45	48	50	52	55	60	62	65	70	75	80
	标准孔径 d1[mm]	标准孔径 d2[mm]

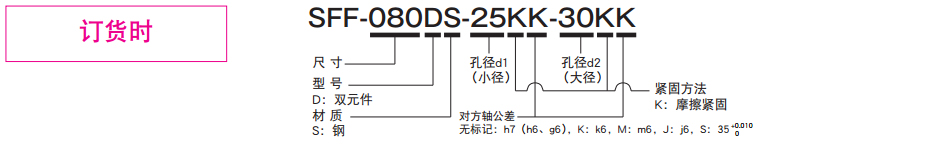

SFF DS TYPE

【规格】

型号	允许转矩[N•m]	允许误差			最高转速[min^-1]	扭转弹性常数[N•m/rad]	轴向弹性常数[N/mm]	转动惯量[kg・m²]	质量[kg]
型号	允许转矩[N•m]	偏心[mm]	偏角[°]	轴向[mm]	最高转速[min^-1]	扭转弹性常数[N•m/rad]	轴向弹性常数[N/mm]	转动惯量[kg・m²]	质量[kg]
SFF-070DS	70	0.25	1（单侧）	±1.0	14000	30000	53	0.79×10^-3	1.13
SFF-080DS	130	0.31	1（单侧）	±1.0	13000	32000	48	1.36×10^-3	1.57
SFF-090DS	200	0.30	1（单侧）	±1.2	12000	70000	160	2.59×10^-3	2.04
SFF-100DS	300	0.31	1（单侧）	±1.4	10000	80000	180	3.68×10^-3	2.29
SFF-120DS	500	0.38	1（单侧）	±1.6	9000	70000	180	7.70×10^-3	3.46
SFF-140DS	800	0.44	1（单侧）	±2.0	8000	50000	180	17.94×10^-3	6.06

※最高转速未考虑动平衡。

※扭转弹性常数为单个元件的数值。

※转动惯量及质量为最大孔径时的数值。

【尺寸】

单位[mm]

型号	D	L	d1	d2	N1, N2	LF	LP	S	C	d3	K	H	M	M1	M2
SFF-070DS	70	78	18, 19	18, 19	53	23.5	8	6.5	5	35	31	4-5.1	M6	4-M6	2-M6
			20, 22, 24, 25	20, 22, 24, 25	58
			28, 30	28, 30	63
			-	32, 35	68
SFF-080DS	80	87.6	22, 24, 25	22, 24, 25	58	25.5	10	8.3	5	40	37	4-5.1	M8	4-M6	2-M6
			28, 30	28, 30	63
			32, 35	32, 35	68
SFF-090DS	90	86.4	28	28	68	25.5	10	7.7	5	50	50	3-6.8	M8	6-M6	3-M6
			30, 32, 35	30, 32, 35	73
			38, 40	38, 40	78
			42, 45	42, 45	83
			48	48	88
SFF-100DS	100	87	32, 35	32, 35	73	25.5	10	8	5	60	58	3-6.8	M8	6-M6	3-M6
			38, 40	38, 40	78
			42, 45	42, 45	83
			48, 50, 52	48, 50, 52	88
			55	55	93
			-	60	98
SFF-120DS	120	97.4	35	35	73	27.5	12	10.2	5	72	68	3-8.6	M10	6-M6	3-M6
			38, 40	38, 40	78
			42, 45	42, 45	83
			48, 50, 52	48, 50, 52	88
			55	55	93
			60	60	98
			62, 65	62, 65	103
			-	70	108
SFF-140DS	140	120.2	35, 38	35, 38	83	36.5	15	10.6	5.5	80	78	3-8.6	M12	6-M8	3-M8
			40, 42, 45, 48	40, 42, 45, 48	88
			50, 52, 55	50, 52, 55	98
			60, 62, 65	60, 62, 65	108
			70, 75	70, 75	118
			-	80	123

※加压螺栓M1和卸除用螺钉孔M2公称为数量-螺钉公称。H•M1•M2的数量是单侧毂的数量。

【标准孔径组合】

型号	标准孔径 d1[mm]	标准孔径 d2[mm]
型号	标准孔径 d1[mm]	18	19	20	22	24	25	28	30	32	35	38	40	42	45	48	50	52	55	60	62	65	70	75	80
SFF-070DS	18	●	●	●	●	●	●	●	●	●	●
	19		●	●	●	●	●	●	●	●	●
	20			●	●	●	●	●	●	●	●
	22				●	●	●	●	●	●	●
	24					●	●	●	●	●	●
	25						●	●	●	●	●
	28							●	●	●	●
	30								●	●	●
SFF-080DS	22				●	●	●	●	●	●	●
	24					●	●	●	●	●	●
	25						●	●	●	●	●
	28							●	●	●	●
	30								●	●	●
	32									●	●
	35										●
SFF-090DS	28							●	●	●	●	●	●	●	●	●
	30								●	●	●	●	●	●	●	●
	32									●	●	●	●	●	●	●
	35										●	●	●	●	●	●
	38											●	●	●	●	●
	40												●	●	●	●
	42													●	●	●
	45														●	●
	48															●
SFF-100DS	32									●	●	●	●	●	●	●	●	●	●	●
	35										●	●	●	●	●	●	●	●	●	●
	38											●	●	●	●	●	●	●	●	●
	40												●	●	●	●	●	●	●	●
	42													●	●	●	●	●	●	●
	45														●	●	●	●	●	●
	48															●	●	●	●	●
	50																●	●	●	●
	52																	●	●	●
	55																		●	●
SFF-120DS	35										●	●	●	●	●	●	●	●	●	●	●	●	●
	38											●	●	●	●	●	●	●	●	●	●	●	●
	40												●	●	●	●	●	●	●	●	●	●	●
	42													●	●	●	●	●	●	●	●	●	●
	45														●	●	●	●	●	●	●	●	●
	48															●	●	●	●	●	●	●	●
	50																●	●	●	●	●	●	●
	52																	●	●	●	●	●	●
	55																		●	●	●	●	●
	60																			●	●	●	●
	62																				●	●	●
	65																					●	●
SFF-140DS	35										●	●	●	●	●	●	●	●	●	●	●	●	●	●	●
	38											●	●	●	●	●	●	●	●	●	●	●	●	●	●
	40												●	●	●	●	●	●	●	●	●	●	●	●	●
	42													●	●	●	●	●	●	●	●	●	●	●	●
	45														●	●	●	●	●	●	●	●	●	●	●
	48															●	●	●	●	●	●	●	●	●	●
	50																●	●	●	●	●	●	●	●	●
	52																	●	●	●	●	●	●	●	●
	55																		●	●	●	●	●	●	●
	60																			●	●	●	●	●	●
	62																				●	●	●	●	●
	65																					●	●	●	●
	70																						●	●	●
	75																							●	●
	标准孔径 d1[mm]	18	19	20	22	24	25	28	30	32	35	38	40	42	45	48	50	52	55	60	62	65	70	75	80
	标准孔径 d1[mm]	标准孔径 d2[mm]

SFF DS

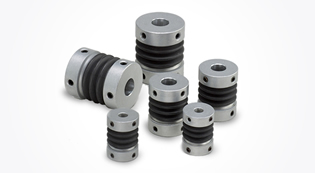

日本三木MIKIPULLEY伺服挠性联轴器SFF系列

产品线

结构和材质

结构和材质

相关推荐
